Anywhere, Anytime,
With you in Battlefield.

GS-930

Integrated Tactical Command & Control System

Integrated Tactical Command & Control System
camp
vehicle
ship
airborne
mobile

Glocom software provides forces with information where and when they need it most !

Role of C2 System

 The information play always important and key role in military operation for ages. Recently, distribution, mobility and three dimension of war aspect further complicate the situation of battle field, therefore, make difficulty in command and control. In such warfare the superiority of information is keenly needed for successful fulfillment of command and control task. Command and control system is an ability for commanders to precisely evaluate the situation of the warfare, make the corresponding plan and control the subordinate units.

 Command and control is continuous sequence of commander’s making-decision.

 Quality of command and control system determines quality of information, quality of information determines quality of making-decision, and finally quality of making-decision determines quality of command and control. Consequently, the system of command and control is an important element of command and control.

Glocom Solution

 Glocom software products provide military commanders at all echelon levels with high-performing command and control (C2) solution that offers clarity, simplicity, and high performance that addresses real world C2 challenges.

 GS-930 is an integrated command and control (C2) software suit with features such as digital map display, situational awareness, Blue Force Tracking, instant messaging and collaborative planning. GS-930 suite connects the headquarters to the tactical edge with its four products: GS-930HQ-WEB, GS-930HQ-CS, GS-930FL, GS-930EG. They are fully integrated through tactical communications, which is the communication core of the GS-930 suite. GS-930 tactical communications provide networked command and control and shared situational awareness, from the higher headquarters to the commander at the tactical edge. It supports IP and non-IP Glocom radios and can handle different types of radios, even within the same vehicle. GS-930 is designed to provide a joint Common Operational Picture (COP) within all the operation domains.

 GS-930 supports contemporary military and civilian data standards: ADS-B, AIS and so on.

ITCCS Framework

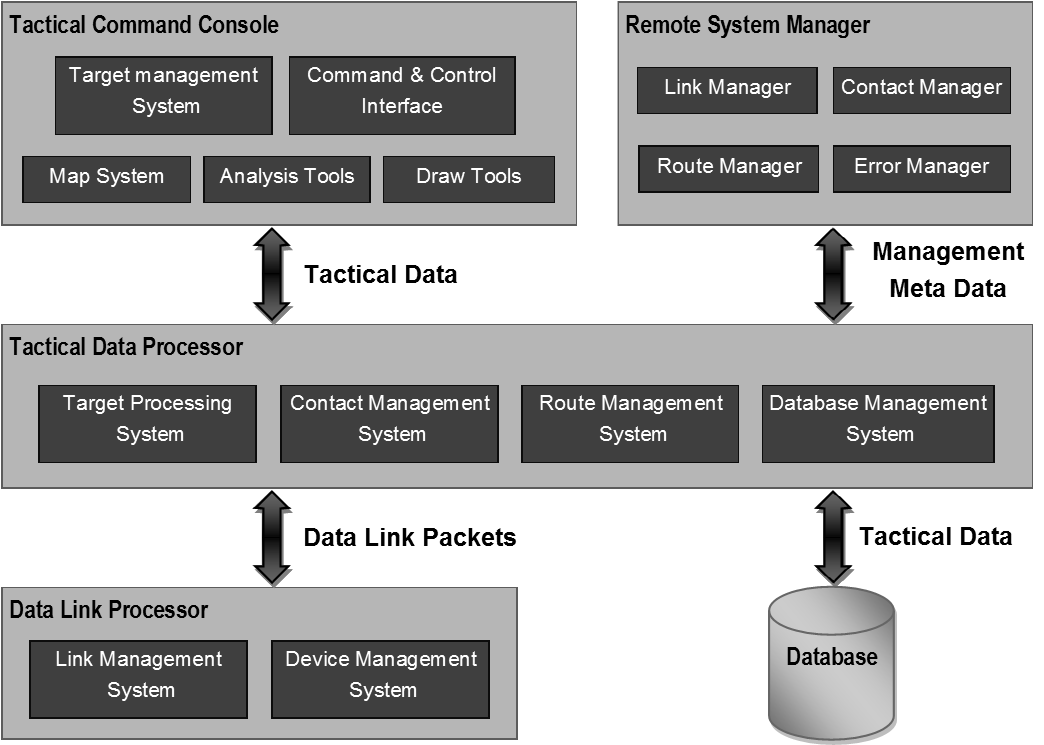

ITCCS Framework(Tactical Command Console, Remote System Manager, Tactical Data Processor, Data Link Processor and Database)

General Features

  • Digital Map: Geographical Information System (GIS) supports the widest range of map formats, terrain data and terrain tools, in both 2D and 3D including GeoTiff, ESRI Shape, Digital Elevation Model (DEM)
  • Situational Awareness: Handling the live feed tracks from various sensors and tactical edge, Blue Force Tracking and supporting of contemporary military and civilian data feed standards: AIS, ADS-B messages
  • Mission Planning: Constructing textual and graphical plans & orders in a collaborative manner
  • Interoperability and Sharing: The highest degree of interoperability and sharing is achieved through Glocom Tactical Communications composed of Glocom radios and software
  • Record & Playback: Allowing debriefing or after action review of specific parts or periods of an operation
  • Tactical Data Link: Supports a wide variety of IP and non-IP Glocom radios

Performance

Target Process

  • 2000pcsTrack
  • 3000pcsMilitary Symbol
  • 2000pcsRoute

Map

  • WGS1984 Datum by default
  • Several Map Projection available
  • 3D Visualization by DEM

NavigationNMEA-0183 Format

Target Display/Update 0.5s

System Delay 0.1~0.5s

GS-930HQ-WEB

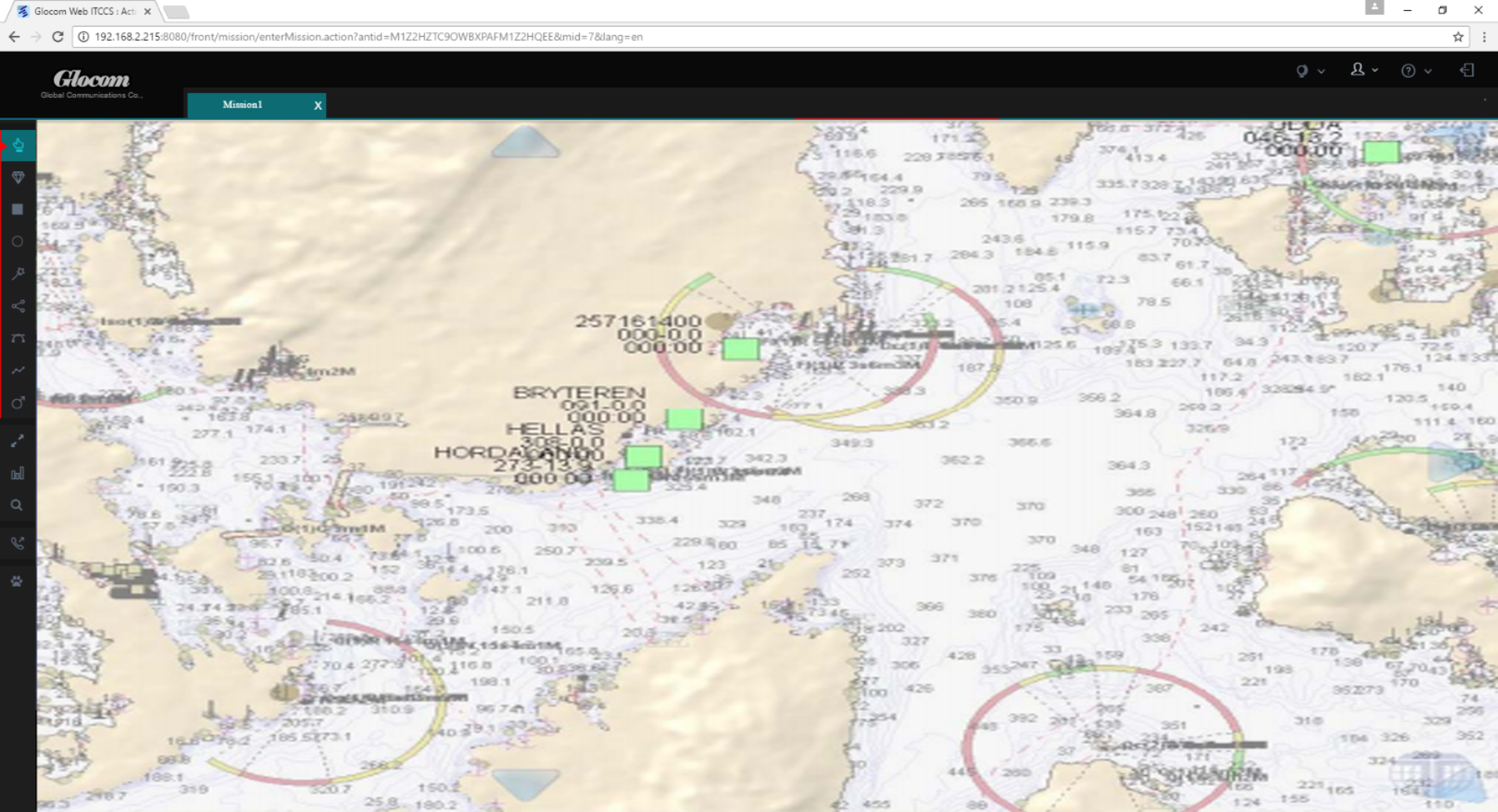

GS-930HQ-WEB Interface

 GS-930HQ-WEB is a web-based C2 software designed for higher level headquarters.

 It provides joint staffs and task force commanders with an up-to-date detailed picture of large-scale operations using high performance web technologies.

 It quickly and effectively aggregates large quantities of information from military and civilian data live feed tracks from external sensors and servers such as AIS (maritime) and ADS-B (air) to generate a common operational picture for land, maritime, air and joint operations.

 GS-930HQ-WEB is remarkably easy to use with an intuitive user interface that gets users up and running quickly. It does not require the installation or sustainment of any software on client computers. It also maximizes accessibility to the situational picture to any authorized user, as well as all authorized users on the wide area network.

 GS-930HQ-WEB is quickly to deploy, requires minimal training, and can be integrated with all other Glocom C2 products and is also ideal for collaborative decision-making joint and multinational forces.

Features

  • Web-based client: no installation required, minimal deployment time and costs, and maximized accessibility
  • Uses Web Map Service (WMS) standard, and also supports custom map service
  • Role-based access control to data
  • Allows user to highlighting important tracks and hide unimportant tracks

Software Requirement

Server

  • Microsoft Windows Server 2008 R2 or above
  • Microsoft Windows 7 or above
  • Ret Hat Enterprise Linux 7.3 or above
  • Ubunt
  • Apache Web Server 5.5 or above
  • PostGIS 2.4.1 or above

Client

  • Windows Internet Explorer 11 or above
  • Google chrome 56.0 or above
  • Mozilla FireFox 57.0b14 or above

Recommended web browser with HTML5

Hardware Requirement

Server

  • RAM: Minimum 1GB, Recommended 2GB
  • HDD: Minimum 100GB, depends heavily on the map data deployed on the server
  • CPU: 2GHz or above

Client

  • RAM: Minimum 1GB, Recommended 2GB
  • HDD: 1GB or above
  • CPU: 2GHz or above
  • Display: Minimum 1024ⅹ768

GS-930HQ-CS

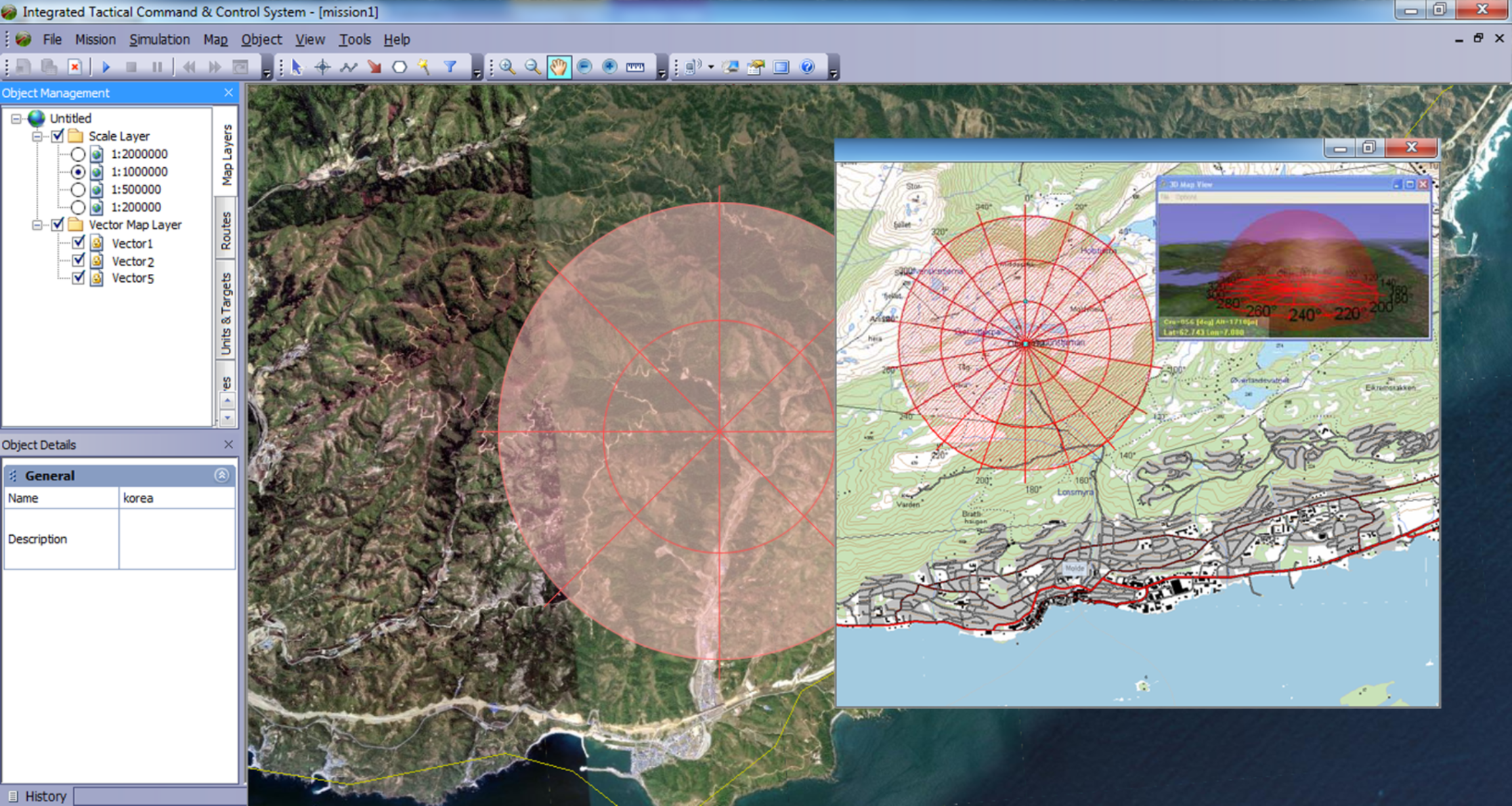

GS-930HQ-CS Interface

 The GS-930HQ-CS is a C2 Information System designed to support operational staff in planning and executing missions. It supports key operational activities such as situational awareness, Mission Planning, Mission Execution, and Mission Reporting. It is intended for installation as required from the highest to the lowest command levels, primarily for use in environments where computers have full monitor display, keyboard, mouse, and LAN/WAN network connections.

 GS-930HQ-CS is a reliable, scalable command and control solution that is easy to learn and use, provides extensive interoperability capabilities and fulfils all core requirements. It supports all headquarters’ tasks and is ready to deploy.

 GS-930HQ-CS works in conjunction with GS-930FL and GS-930EG through Glocom Tactical Communications to provide a unified C2 system across echelons of the command chain from the battlefield frontline vehicles to the command headquarters.

 It is a client/server application thereby enabling comprehensive scalability for large headquarters.

Features

  • Supports maps as raster, vector, or a combination of these formats
  • Powerful GIS: Analysis tools, Drawing tools
  • High performance
  • Role-based access control to data

Software Requirement

Server

  • Microsoft Windows Server 2008 R2 or above
  • Microsoft Windows 7 or above
  • Ret Hat Enterprise Linux 7.3 or above
  • Ubunt
  • PostGIS 2.4.1 or above

Client

  • Microsoft Windows 7 or above
  • Fedora 18 or above
  • Ubunt

Hardware Requirement

Server

  • RAM: Minimum 1GB, Recommended 2GB
  • HDD: Minimum 100GB, depends heavily on the map data deployed on the server
  • CPU: 2GHz or above

Client

  • RAM: Minimum 1GB, Recommended 2GB
  • HDD: 1GB or above
  • CPU: 2GHz or above
  • Display: Minimum 1024ⅹ768

GS-930FL

 The GS-930FL is a battle and crisis management software for the mounted and dismounted frontline commander. Designed with operational simplicity, it fits into any organization by providing precisely the tools needed by battlefield commanders. Its design and features address both military and civilian commanders at lower organizational levels.

 This solution facilitates mobility that enables the operator to mount and dismount vehicles in the application, while ensuring that his location is always accurately known by other participants.

 GS-930FL is fully integrated with other components of GS-930 suite through Glocom Tactical Communications to provide networked command and control and shared situational awareness, from the higher headquarters right down to the commander at the tactical edge.

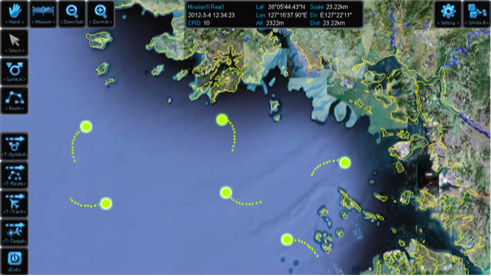

GS-930FL Interface

Features

  • High update rate for BFT over tactical radios
  • The software has a small footprint with a lean GIS that offers high performance visualization with no need for a database
  • It is designed for installation on devices with small to medium displays, and the user interface
  • Easy to install, and operate

Software Requirement

  • Microsoft Windows 7 or above
  • Fedora 18 or above
  • Ubunt

Hardware Requirement

  • RAM: Minimum 1GB, Recommended 2GB
  • HDD: Minimum 100GB, depends heavily on the map data deployed on the server
  • CPU: 2GHz or above
  • Display: Minimum 1024ⅹ768

GS-930EG

 The GS-930EG is an Android-based battle management system for the commanders and soldiers at the tactical edge. Designed for simplicity it provides the commander with fast and clear friendly force tracking (FFT) picture.

 Users can exchange their own location and spot reports between subordinates, superiors, and peers through the tactical radio.

 GS-930EG is fully integrated with other products of GS-930 suite through Glocom Tactical Communications to provide networked command and control and situational awareness.

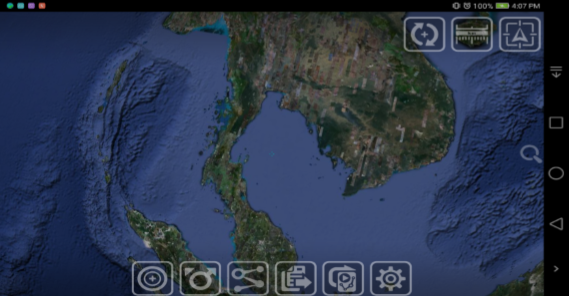

GS-930EG Interface

Features

  • Superior situational awareness on Android devices: own position, FFT, tactical reports, intelligence pictures and plans
  • High update rates for FFT over tactical radios
  • Quickly report and share spotted targets
  • Exceptional performance over intermittent, low bandwidth tactical radio networks

The GS-930EG is designed to run on devices with the following minimum configuration:

  • Android 5.0
  • Display 7”
  • 1GB RAM
  • 1.5GHz
  • Hardware buttons and touch input supported

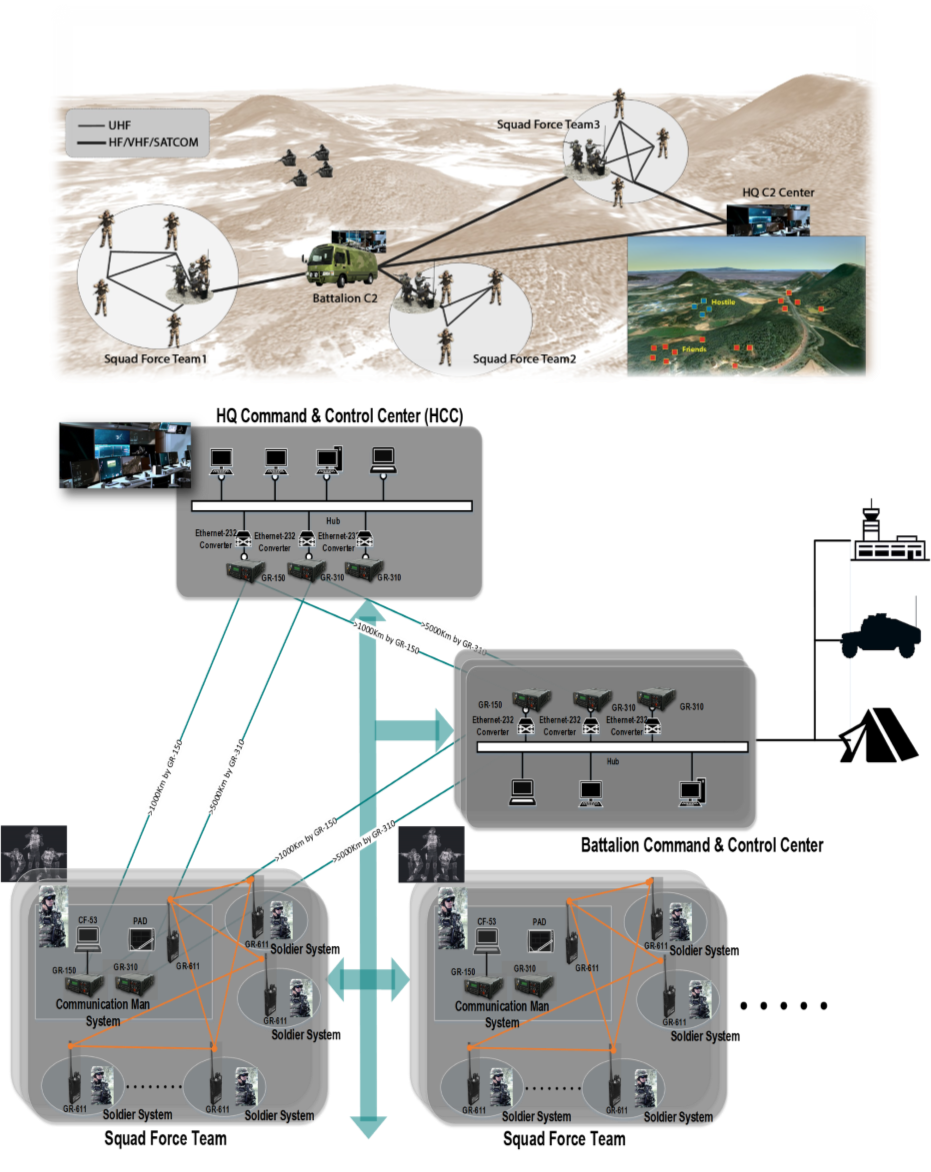

Integrated Tactical Command & Control System

Integrated Tactical Command & Control System Architecture

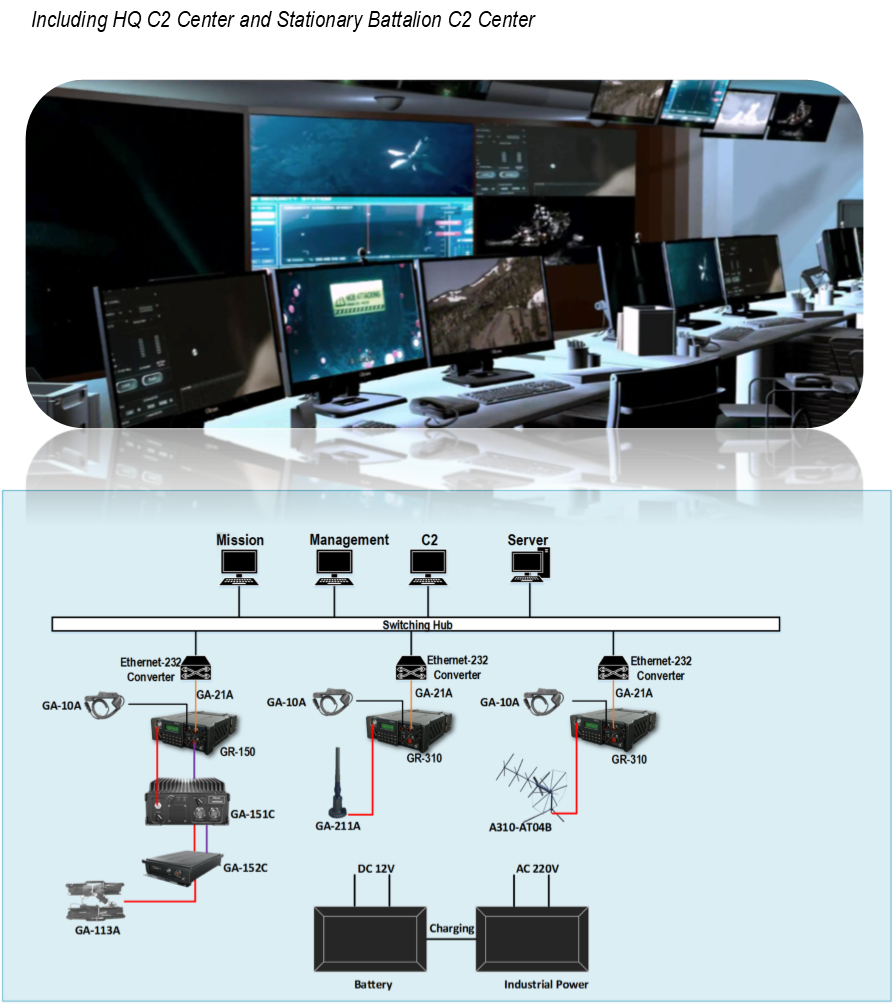

Stationary Command & Control Center

Stationary Command & Control Center View & Architecture

Ordering Information

No DESCRIPTION MODEL BRAND UNIT QTY
A Radio Communication
A-1 GR-150 HF Mobile set GR-150VH Glocom set 1
A-2 GR-310 VHF/UHF Mobile set GR-310VH Glocom set 1
A-3 GR-310 VHFUHF SATCOM Mobile set GR-310VH-SATCOM Glocom set 1
B Computer & Accessories
B-1 Server CPU: Intel Xeon E3-1200 v3, RAM: 32GB, Hard Disk: 24TB Brand pc 1
B-2 Desktop PC Brand pc 3
B-3 Switching Hub 16 ports Brand pc 1
B-4 Ethernet To RS232 Converter NP301 3onedata pc 3
B-5 Ethernet Cable 5m Brand pc 10
B-6 Battery with charger 200A Brand pc 1
C Web-based C2 software for higher level headquarters GS-930HQ-WEB
C-1 Client Operating System 64-bit Windows 7 / 64bit-Windows 10 Microsoft copy 3
C-2 Server Operating System 64-bit Windows Server 2012 Microsoft copy 1
C-3 Database Management System PostgreSQL v9.6 x64, pgadmin v4.2 x86 copy 1
C-4 GIS Database Management System PostGIS v2.4.1 x64 copy 1
C-5 Web Browser 64-bit Google Chrome v56.0.2924.87 or above Google copy 1
C-6 Tactical Server Software GS-930HQ-SVR v2.0.0 Glocom copy 1
D C/S-based C2 software for higher level headquarters GS-930HQ-CS
D-1 Client Operating System 64-bit Windows 7 / 64bit-Windows 10 Microsoft copy 3
D-2 Server Operating System 64-bit Windows Server 2012 Microsoft copy 1
D-3 Database Management System PostgreSQL v9.6 x64, pgadmin v4.2 x86 copy 1
D-4 GIS Database Management System PostGIS v2.4.1 x64 copy 1
D-5 Web Browser 64-bit Google Chrome v56.0.2924.87 or above Google copy 1
D-6 Tactical Server Software GS-930HQ-SVR v2.0.0 Glocom copy 1
D-7 Tactical Client Software GS-930HQ-CC v2.0.0 Glocom copy 1

Mobile Command & Control Center

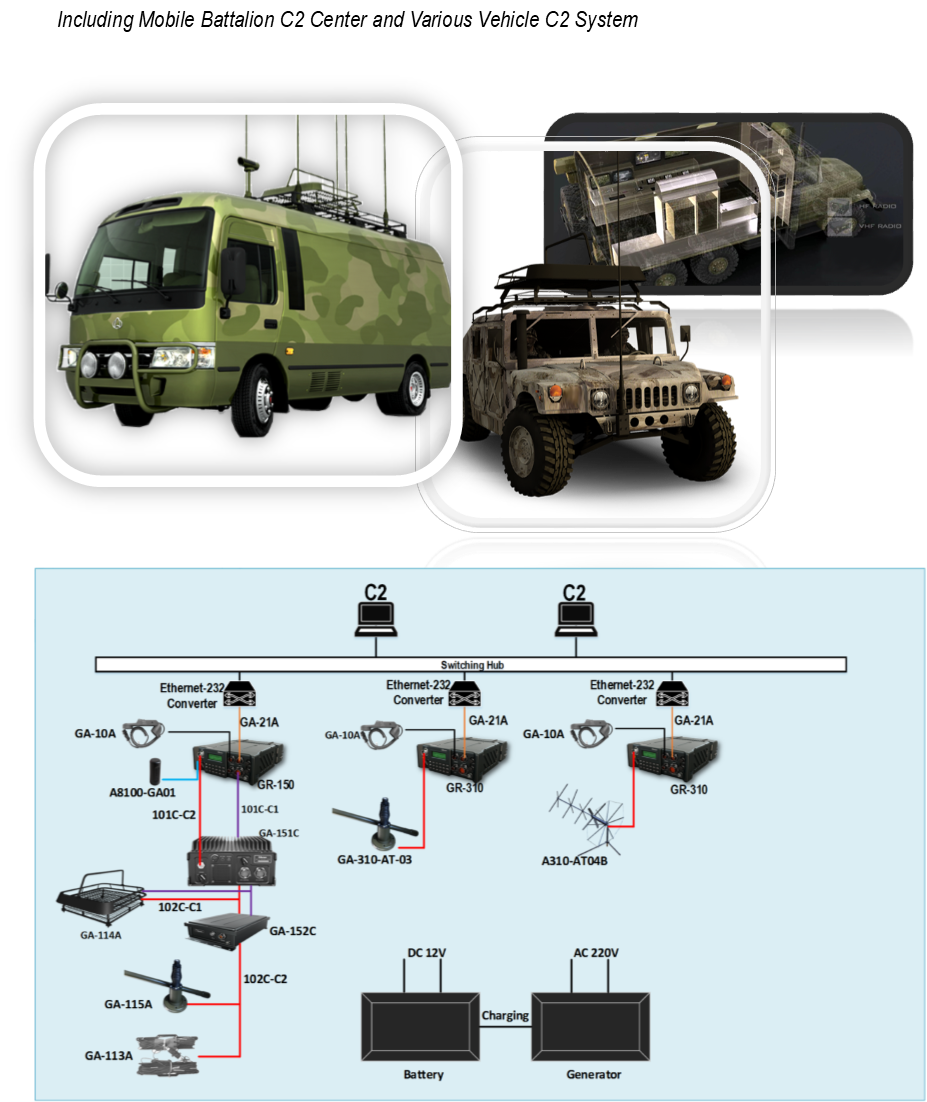

Mobile Command & Control Center including mobile battalion C2 Center and Various Vehicle C2 System

Ordering Information

No DESCRIPTION MODEL BRAND UNIT QTY
A Radio Communication
A-1 GR-150 HF Mobile set GR-150VH Glocom set 1
A-2 GR-310 VHF/UHF Mobile set GR-310VH Glocom set 1
A-3 GR-310 VHFUHF SATCOM Mobile set GR-310VH-SATCOM Glocom set 1
B Computer & Accessories
B-1 Tactical Computer CF-53 Panasonic pc 2
B-2 Switching Hub 16 ports Brand pc 1
B-3 Ethernet To RS232 Converter NP301 3onedata pc 3
B-4 Ethernet Cable 5m Brand pc 10
B-5 Generator 3KW Brand set 1
B-6 Battery with charger 200A Brand pc 1
B-7 Vehicle installation kit GR-101C10-ITK Glocom set 1
C Battle and Crisis Management Software for the Mounted and Dismounted Frontline Commander GS-930FL
C-1 Client Operating System 64-bit Windows 7 / 64bit-Windows 10 Microsoft copy 3
C-2 Tactical Client Software GS-930FL-CC v1.5.0 Glocom copy 1

Squad Force Team

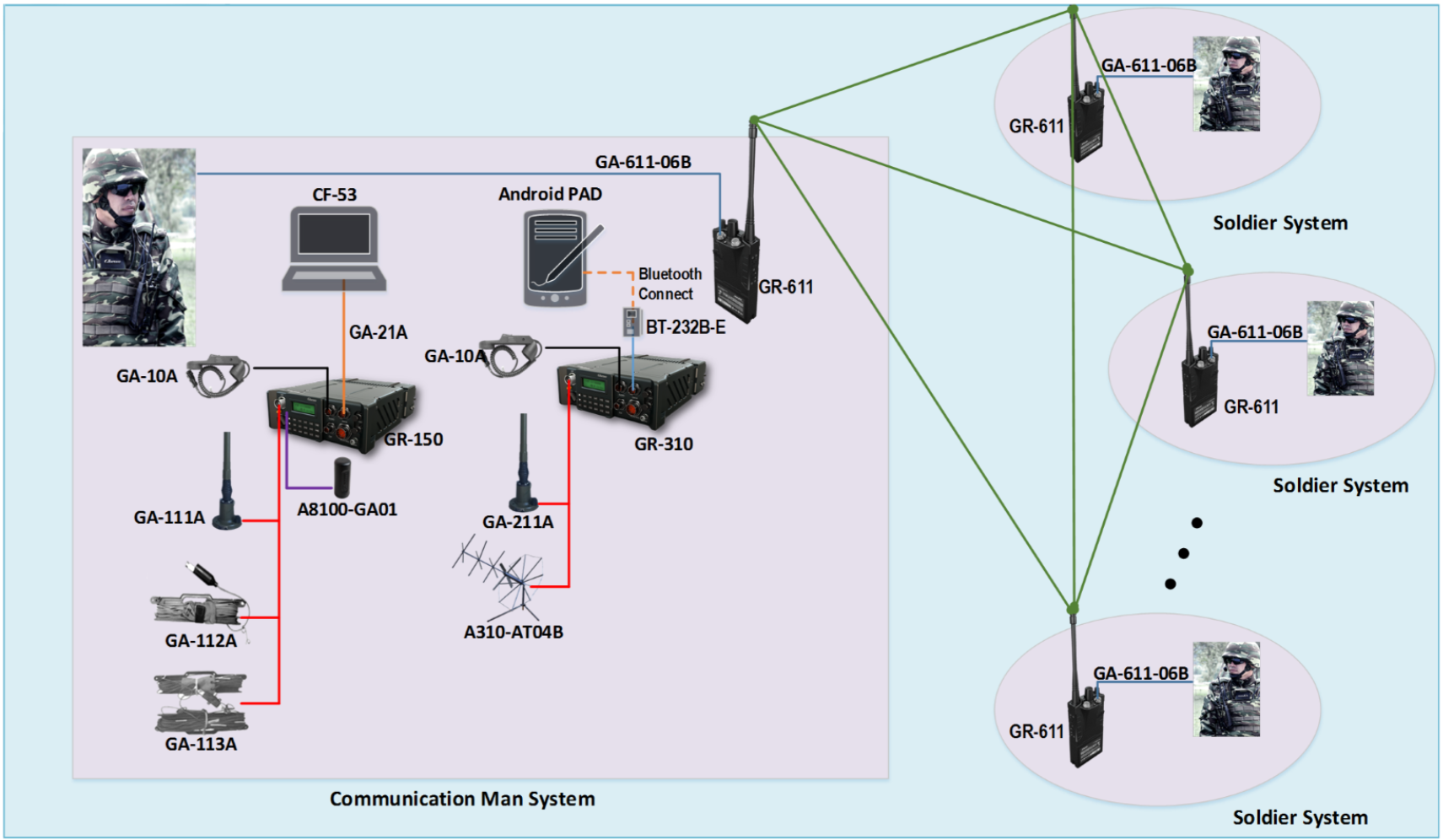

Squad Force Team Architecture(Communication Man System, Soldier Systems)

Ordering Information

No DESCRIPTION MODEL BRAND UNIT QTY
A Radio Communication
A-1 Communication Man Set (CMS) GS-2500-01 Glocom set 1
A-2 Modern Soldier Set (MSS) GS-2500-02 Glocom set 10
B Computer & Accessories
B-1 Tactical Computer CF-53 Panasonic pc 1
B-2 Android Pad Armor X3 pc 1
B-3 Bluetooth Ethernet Converter BT-232B-E pc 1
C Android-based battle management software for the commander and soldiers at the tactical edge GS-930EG
C-1 Tactical Client Software GS-930EG-CC v4.1.0 Glocom copy 1
C-2 Tactical Chat Software GS-910EG v4.2.6 Glocom copy 1
