Officer Handset(GA-8100OH)
The officer handset is a high-grade, lightweight MIL handset for use with the Glocom tactical radio systems. One handset is supplied with each radio.
Smallest, Lightest and Fastest HF/VHF Manpack Radio in the World!
Key Benefits
Features
| Wideband HF Data | MIL-STD-188-110C Appendix D |
| ALE | STANAG 4538 FLSU |
| Frequency Hopping | Serial Tone ECCM GR-150 interoperable |
| Waveform | HF: MIL-STD-188-110C Appendix. D, and Main Body Serial-tone Waveforms, VHF: FSK |
| Vocoder | HF: MELP1200 VHF: CVSD, MELP2400 |
Standard Set for GR-8150HV

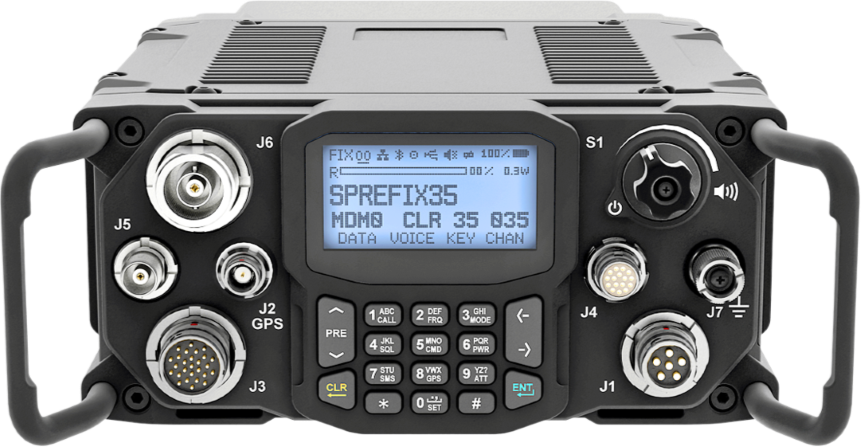

The Glocom GR-8150HV HF/VHF manpack radio set is ideal for extended portable field operations providing the tactical user with effective, secure and comprehensive communications with remote sited command locations. It includes all necessary items like handset, antennas, battery pack, battery case etc. The standard set includes:-
Compatible Batteries
The Glocom GR-8150HV HF/VHF manpack radio system reaches the highest level in wideband data performance and interoperability with fielded GR-8150HV manpack radio, GR-150 HF manpack radio, GR-250 VHF manpack radio and GR-310 V/UHF manpack radio - to deliver information superiority on today’s battlefields. It provides continuous coverage from 1.6 to 60MHz, 20W HF and 10W VHF on the power of a single battery, and HF bandwidths from 3 to 24 kHz - with data rates of up to 76.8 kbps.

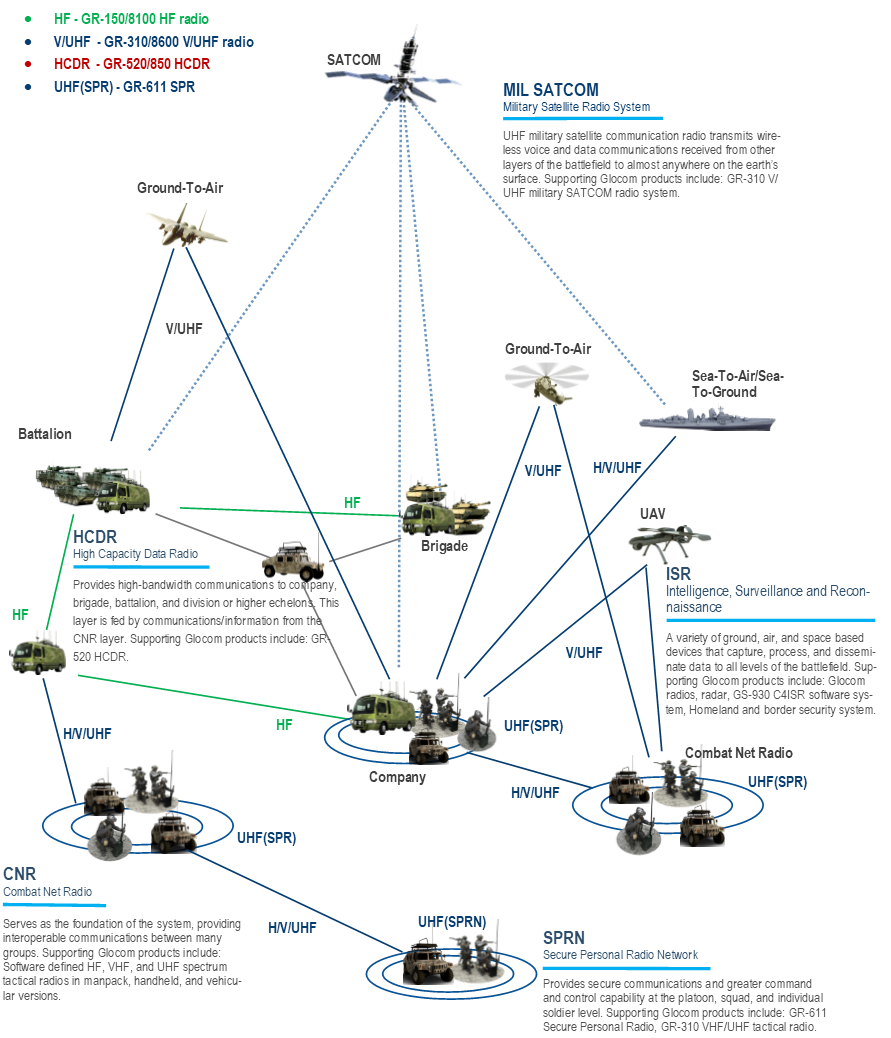

No matter the deployment scenario, the GR-8150HV ensures the transmission and receipt of critical communications. With its Glocom GR-8100HV/GR-150/250/310 interoperability, it easily integrates into existing networks to deliver secure voice and data. It provides extended range, operating over degraded communication channels. And with ultra-robust 3G waveforms, it provides last-ditch voice and SMS messaging in channels where legacy waveforms don’t work.
Incorporating enhanced anti-jamming measures and embedded AES encryption, all GR-8150HV transmissions are completely secure and reliable. The radio also features high performance automatic link establishment and data link protocols to provide fast, reliable linking and error-free data transfer - even under the most challenging channel conditions.
In addition to its array of embedded capabilities—which also include an internal GPS receiver - the GR-8150HV features a Software Defined Radio (SDR) architecture, which allows it to host future capabilities. Combined with its incredible processing power, this ensures it will continue to be state-of-the-art well into the future.
Providing all of these features in a form factor that’s more compact and 30% lighter than previous HF manpack radio, the GR-8150HV enables today’s warfighter to take on tomorrow’s missions.
Options for GR-8150HV

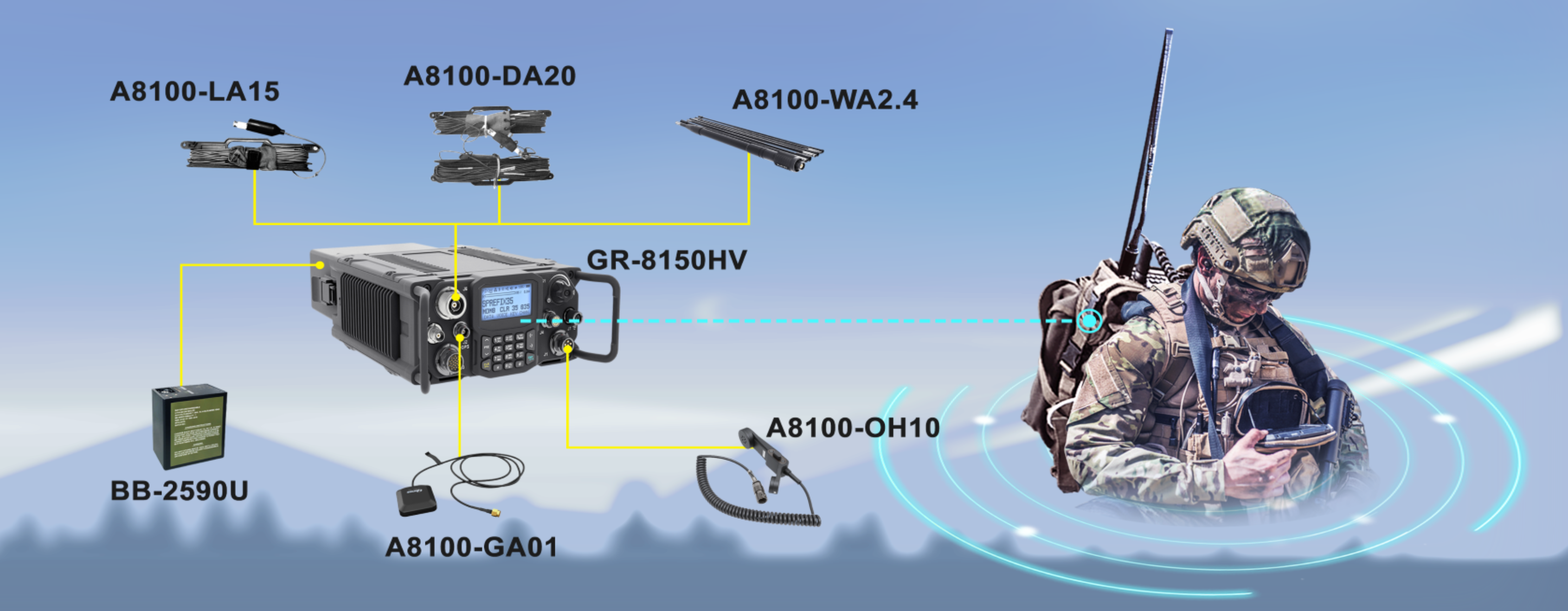

Configuration of GR-8150HV radio set
The officer handset is a high-grade, lightweight MIL handset for use with the Glocom tactical radio systems. One handset is supplied with each radio.
30~88MHz, 40W, Impedance:50Ω, Contact resistance: ≤120mΩ, Length:2400mm, Draw back length: 365mm, ≤0.7Kg, Interface: BNC fixed with threading sheath.
This antenna can be used for communication on actual combat. This antenna is used for HF radio set or long distance emergency communication. It has the features of high radiation efficiency, easy carrying and installation.
This is high gain, low loss, active, extra low current consumption, small size GPS antenna. It supports SMA plug and magnetic mounting. It's useful for mobile application with GR series radios.
Battery box for BB-2590/U series batteries for GR-8100 manpack radio system. Waterproof and moisture-proof. This battery box is fully compatible with BB-2590/U size battery system.
The Li-Ion battery is a very high-capacity, rechargeable, Li Ion battery for the GR-8100 manpack. Use with Glocom A8100-BC2B/4B/6B battery charger system.

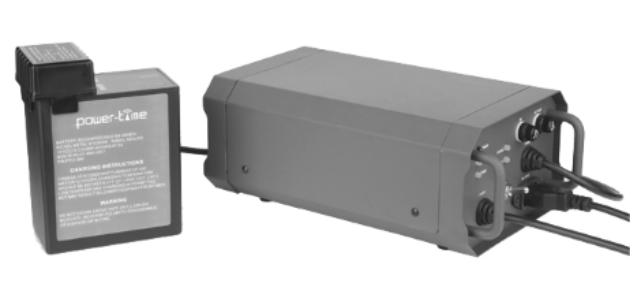

This is 2 bay battery charger for BB-2590/U. Up to 2 batteries may be connected for simultaneous processing, and disconnected from any channel during processing.
Earth braid, 1.5m.
This is a user manual for GR-8150HV radio system.
Tactical headset adopts structure of head ring soft strap, it is audio terminal. It has the features of small in dimension, light in weight, good water proof performance, high environment adaptability.
This speaker microphone amplifies radio audio output for manpack, vehicular and base station applications. It can be connected to audio jack on manpack radio.
This is RS-232C data communication cable for GR8000 series radios. It is used for data communication, radio programming and radio control by computer etc.
This software application allows user to enter frequency, mode, encryption code, ALE network information and other parameters into a Windowsbased computer program and save it to a file.
This cable is the Ethernet cable to connect radio and Ethernet port or network hub.
1.6~30MHz, 40W, Contact resistance: ≤120mΩ, Length:2400mm, Draw back length: 365mm, ≤0.7Kg, Interface: BNC fixed with threading sheath.
This antenna can be used for communication on actual combat. This antenna is used for stationary HF radio set or long distance emergency communication.
This is HF mobile communication antenna. The antenna is composed of three parts. The antenna is light weight, good flexibility, endurable for corrosion.
This is a rucksack for GR series manpack radio system. It is very convenience for soldier to carry radio with all accessories. It can keep antenna, batteries, handset, headset etc…
This is high gain, low loss, active, extra low current consumption, small size GPS antenna. It supports SMA plug and magnetic mounting or screw mounting. It's useful for mobile application with GR series radios.
